Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches Slot Bandwidth 2 Tbps

Name: Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches Slot Bandwidth 2 Tbps
Brand: HUAWEI
Price: 1 USD

Wholesale Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches Slot Bandwidth 2 Tbps from china suppliers

Brand Name : HUAWEI

Model Number : Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Number of ports : Minimum of 24 ports and maximum of 64 ports.

Port types : D_Port(ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port; optional port-type control ; Access Gateway mode: F_Port and NPIV-enabled N_Port

Aggregate bandwidth : 2 Tbps

Power Suplly : Base switch includes a single, fixed power supply with four integrated system cooling fans

Dimension : Width: 44 cm (17.32 in.) Height: 4.39 cm (1.73 in.) Depth: 35.56 cm (14 in.)

Contact Now

HUAWEI OceanStor SNS3664 Switches are the purpose-built network infrastructure for mission-critical storage. Use Gen 6 Fibre Channel, Fabric Vision technology deliver unmatched 32 Gbps performance, increased scalability, and operational stability to ensure hyper-scale virtualization, larger cloud infrastructures, and growing flash-based storage environments.

Form	Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches
Number of ports	Minimum of 24 ports and maximum of 64 ports. Port numbers above minimum are enabled through 12-port SFP+ increments via Ports on Demand (PoD) licenses and through one 4-port QSFP PoD; Access Gateway default port mapping: 40 SFP+ F_Ports, 8 SFP+ N_Ports
Port types	D_Port(ClearLink Diagnostic Port), E_Port, EX_Port, F_Port, AE_Port; optional port-type control ; Access Gateway mode: F_Port and NPIV-enabled N_Port
Performance	Fibre Channel: 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53 Gbps line speed, full duplex;14.025 Gbps line speed, full duplex; 28.05 Gbps, full duplex;112.2 Gbps, full duplex; auto-sensing of 4, 8, 16, 32 Gbps port speeds and capable of supporting 128 Gbps speeds; 10Gbps optionally programmable to fixed port speed
Aggregate bandwidth	2 Tbps
power supply	Base switch includes a single, fixed power supply with four integrated system cooling fans
Dimension	Width: 44 cm (17.32 in.) Height: 4.39 cm (1.73 in.) Depth: 35.56 cm (14 in.)

Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches Slot Bandwidth 2 Tbps

Product Tags:

2 Tbps OceanStor SNS3664

Fibre Channel OceanStor SNS3664

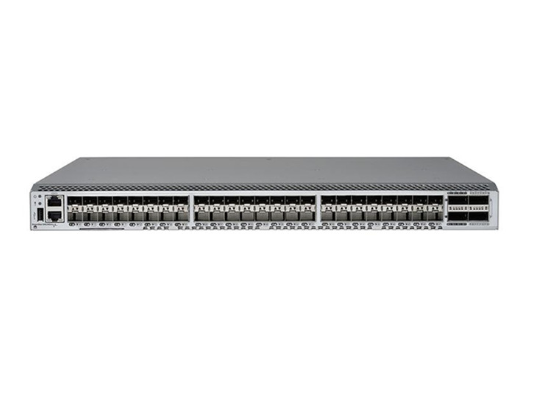

Hua Wei OceanStor SNS3664 Fibre Channel Storage Switches Slot Bandwidth 2 Tbps Images
