Xfusion FusionServer 2288H V5 2U 2-socket Rack Server With 24 DDR4 DIMM slots

Name: Xfusion FusionServer 2288H V5 2U 2socket Rack Server With 24 DDR4 DIMM slots
Brand: Xfusion
Price: 1 USD

Wholesale Xfusion FusionServer 2288H V5 2U 2-socket Rack Server With 24 DDR4 DIMM slots from china suppliers

Brand Name : Xfusion

Model Number : 2288H V5

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Form Factor : 2U, 2-socket rack server

Processors : 1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W

Memory : 24 DDR4 DIMM slots

RAID Support : RAID 0, 1, 10, 1E, 5, 50, 6, or 60

Network Ports : LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports

PCIe Expansion : Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC

Contact Now

The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel^® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.

Form	Xfusion FusionServer 2288H V5 2U 2-socket Rack Server
Processors	1 or 2 1st Generation Intel^® Xeon^® Scalable processors (3100/4100/5100/6100/8100 series), up to 205W 1 or 2 2nd Generation Intel^® Xeon^® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory	24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel^® Optane™ PMem modules (100 series), 2666 MT/s
Local Storage	Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs 12/16/20 x 3.5-inch SAS/SATA HDDs 4, 8, 12, 24, or 28 NVMe SSDs 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SATA SSDs, hot swappable, hardware RAID
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60 Configured with a supercapacitor for cache power-off protection (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network	LOM: 2 x 10 GE + 2 x GE ports Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Power Supply	2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options: 550W AC Platinum PSUs 900W AC Platinum/Titanium PSUs 1,500W AC Platinum PSUs 1,500W 380V HVDC PSUs 1,200W -48V to -60V DC PSUs
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.) Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)

Xfusion FusionServer 2288H V5 2U 2-socket Rack Server With 24 DDR4 DIMM slots

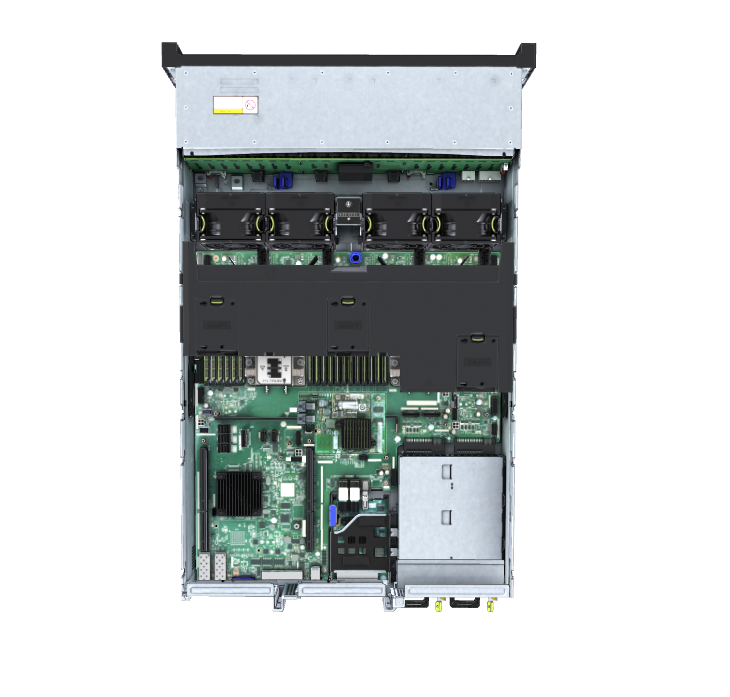

Xfusion FusionServer 2288H V5 2U 2-socket Rack Server With 24 DDR4 DIMM slots Images
