Xfusion FusionServer 5288 V7 4U Rack Server with 4th/5th Gen Intel® Xeon® Scalable processors, 32 x DDR5 DIMMs, and 10 x PCIe slots

  • 1
  • 2
  • 3

Brand Name : Xfusion

Model Number : 5288 V7

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Form Factor : 4U Rack Server

Processor : 1 or 2 x 4th/5th Gen Intel® Xeon®Scalable processors, with up to 385 W TDP per processor

Chipset : Emmitsburg PCH

Memory : 32 x DDR5 DIMMs, with up to 5600 MT/s speed

PCIe Expansion : Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported

GPU Card : 8 x single-width GPU cards*

Fan Module : 6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy

Dimensions(H x W x D) : Chassis with 3.5ʺ drives: 175 mm × 447 mm × 798 mm (6.89 in. x 17.60 in. x 31.42 in.)

Contact Now

Xfusion FusionServer 5288 V7 Rack Server
The FusionServer 5288 V7 is a next-generation 4U 2-socket rack server engineered for demanding workloads including Internet services, data centers, cloud computing, virtualization, distributed storage, big data processing, and enterprise applications.
This server delivers exceptional performance with low power consumption, high scalability and reliability, simplified deployment, and comprehensive management capabilities.
Key Features
  • Optimized for Internet Data Center (IDC) and core IT services
  • Advanced cloud computing and virtualization support
  • High-performance distributed storage and big data processing
  • Enterprise and telecom service application ready
Technical Specifications
Form Factor 4U rack server
Processor 1 or 2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor
Chipset Emmitsburg PCH
Memory 32 x DDR5 DIMMs, with up to 5600 MT/s speed
Local Storage Hot-swappable drive configurations:
• 4 x 2.5ʺ SAS/SATA drives/SSDs
• 24 to 44 x 3.5ʺ SAS/SATA drives
• 4 x NVMe SSDs
Flash storage: 2 x M.2 SSDs
RAID RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration
Network Expansion capability for multiple network types. OCP 3.0 NICs supported. Two FlexIO card slots support two OCP 3.0 NICs with hot swap and PCIe 5.0 support
PCIe Expansion Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 supported
GPU Card 8 x single-width GPU cards*
Fan Module 6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy
Power Supply 900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy
Management iBMC chip with dedicated management GE network port providing comprehensive management features including fault diagnosis, automatic O&M, and hardware security hardening. Supports Redfish, SNMP, and IPMI 2.0 interfaces with HTML5/VNC KVM remote management. Optional FusionDirector management software for intelligent, automated, visualized lifecycle management.
Dimensions (H x W x D) Chassis with 3.5ʺ drives: 175 mm * 447 mm * 798 mm (6.89 in. x 17.60 in. x 31.42 in.)

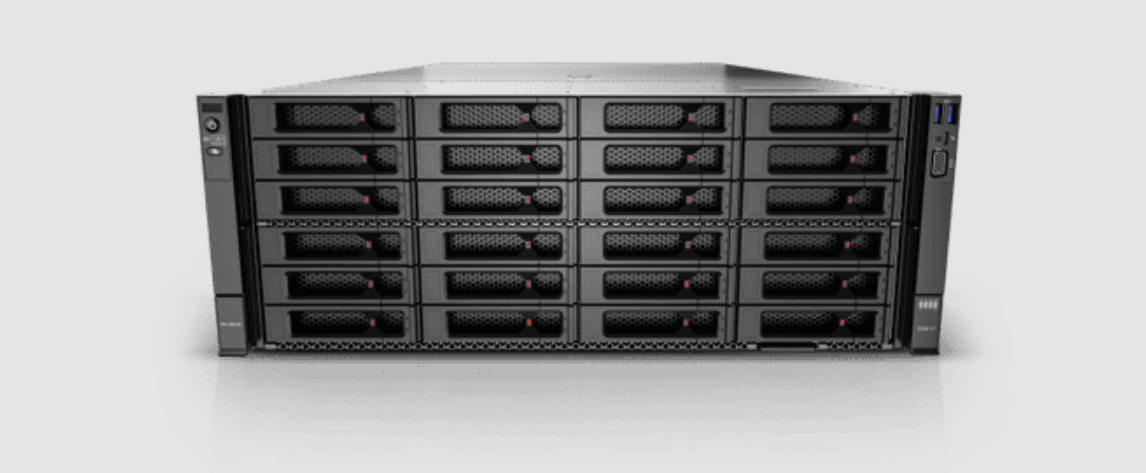

Product Visualization
